Thuse Elektronics P. Ltd.

Multi-Event / School Bell Timer
Timeline Multi is a Multi-Event Timer. It is an advanced timer which functions as ON & OFF exactly as per time set/ programmed by the user. Multi-event timer is used where it is required to switch load at different times of the day for desired duration ON MULTIPLE OCCASIONS. click here: http://www.thuse.net/multi-event-school-bell-timer/

Smart plug high low voltage cutout buy online link here:

http://www.flipkart.com/smart-plug-high-low-voltage-cutout-protector-rated-6amp-1-single-adapter-surge/p/itme32fvzsxyhwr4?pid=SURE32FVSKQUWZBV&ref=L%3A-7501242624863547897&srno=p_1&query=SMART+PLUG+HIGH+LOW+VOLTAGE+CUTOUT+6+AMP&otracker=from-search

Smart Plug High Low Voltage Cutout/ Protector Rated @ 6amp. 1 Single Adapter Surge Protector... Buy Smart Plug High Low Voltage Cutout/ Protector Rated @ 6amp. 1 Single Adapter Surge Protector for Rs.999 online. Smart Plug High Low Voltage Cutout/ Protector Rated @ 6amp. 1 Single Adapter Surge Protector at best prices with FREE shipping & cash on delivery. Only Genuine Products. 30 Day Replace…

PCB Assembly
Our company has got a world class manufacturing setup to cater to your all sourcing needs of EMS Activists (Electronics Manufacturing Service) on RoHS and Non-RoHS platforms. We are capable to do PCB Assembly of smallest SMD component of 01005 size to longest one of 150mm long. Our SMT setup has got all those things needed to carry out SMT production PCB Assemblies under 100 PPM Level as per IPC 610 Standard.
visit: http://www.thuse.net/facility/electronics-production/pcb-assembly-link/

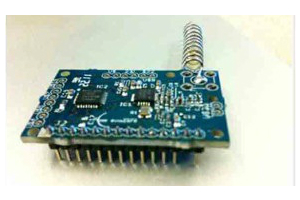

RF Module

Specifications
1.Frequency -868 MHz
2.Frequency range - 240-930 MHz
3.O/p power in DB - 20 dBm
4.O/p power in Watts - 0.1 W
5.Max range - 250 m
6.Operating Voltage - 1.8-3.6 V
7.Quiescent power consumption - 78 microA
8.Power consumption during signal - 280 mA
9.Means of data communication to module - SPI, SMBus,UART
10.Total usable I/o pins available to module - 24
11.Out of total I/Os how many are ADC 24 (On Module Aval - 14)
12.ADC resolution 10 bit
12.Every port pin current sink-source mA? - Sink 100 mA
13.Baud rates available - 0.123-256 kbps
14.TR to RX time - 30 ms
15.Rx to Tr ack time 20 ms
16.Sensitivity - -121 dBm
Visit: http://www.thuse.net/products/rf-module/

Ferrite Core Transformers
Besides electronics design and manufacturing, we also produce Ferrite Core Transformers & Coils needed for various applications like SMPS, L.E.D Drivers, Power Adapters, Mobile Phone Chargers etc. Below are the facilities we have to maintain highest level of quality and performance:

1. Automatic Winding Machines:
We have automatic winding machines to ensure and maintain precise winding turns and ratios.
2.Vacuum Impregnation Plant:
We also have Vacuum Impregnation Facility where we guarantee varnish pe*******on till the inner-most layer of the winding close to the bobbin. This eliminates possibilities of copper wire corrosion due to moisture entrapment.
3. H.V Leakage Tester :
We have check 100% transformers produced for High Voltage Leakage Test at 5 K.V. More Information visit: http://www.thuse.net/products/ferrite-core-transformers/

Multi-Event / School Bell Timer
Timeline Multi is a Multi-Event Timer. It is an advanced timer which functions as ON & OFF exactly as per time set/ programmed by the user. Multi-event timer is used where it is required to switch load at different times of the day for desired duration ON MULTIPLE OCCASIONS.
More Information about Multi event timer click here: http://www.thuse.net/multi-event-school-bell-timer/

Sophisticated appliances are sensitive to VOLTAGE FLUCTUATIONS. Voltage Stabilizers have their own limit to sustain voltage fluctuations. So there are bright chances that your appliances can get damaged…..
Due to voltage fluctuations………

Smart Plug Working Principle:
1.For complete protection simply plug the Smart Plug into the mains and plug in your appliances to Smart Plug.
2.When the mains power supply fluctuates outside pre- set tolerances (170V and 270V) the power to your appliance is disconnected.
3.Smart Plug monitors the voltage for a short period to ensure the power has stabilized before re-connecting.
4.In addition, the start-up delay provides protection against power-back surges commonly experienced after resumption of power in a power cut situation.
Entire operations are AUTOMATIC……

visit for more information: http://www.thuse.net/business/smart-plug/

What We Offer:

1). In general: We offer End to End - Box Building Electronics Manufacturing Solutions for any applications like Automotive, Industrial, Home Appliances, Defence, Telecommunication, Embedded, GPS/GSM Applications.

2). Timers :We offer Timeline Astronomical & Presettable Street Light Controller / Timer and panels. This is a programmable automatic lighting system most widely used for On-Off control of lights in common areas like Street Lights, Outdoor Lights in common areas, Basements Lights, Parking Lights, Garden lights, Lights in common Lobbies and Corridors, Hoarding Lights and so on... Apart from this, we also manufacture Multi Event Timers. Typically known as School Bell Timers.

3). Smart Plug High-Low Voltage Cutout:This is a pluggable adapter to be fixed on to the wall socket. Connect your appliance plug pin on to the socket provided on this adapter called Smart Plug. This is a wise move to protect your expensive appliances from High-Low Voltage fluctuations.

4). GSM Switch : Mobile operated remote switching control system, wifi or RF operated switching systems, or any kind if customized systems or products. Typical product applications could be Mobile Operated Remote Switch, Mobile Operated Pump Start / Stop.

5). EMS: Apart from this we also provide EMS (Electronics Manufacturing Service) for many esteemed customers. For more details about our products and services, please visit relevant pages of this website www.thuse.net

Offering Wide Range Of Electronic Devices .thuse.net

What is the principle of a voltage stabilizer?

A voltage stabilizer is an electrical appliance used to feed constant voltage current to electrical gadgets like Refrigerator, TV, DTH, Microwaves, ACs and computers, and protects them from damage due to voltage fluctuations. It works on the principle of a transformer, where the input current is connected to primary windings and output is received from secondary windings. When there is a drop in incoming voltage, it activates electromagnetic relays which add to more number of turns in the secondary winding, thus giving higher voltage which compensates for loss in output voltage. When there is rise in the incoming voltage, the reverse happens, and, thus, the voltage at the output side remains almost unchanged.
